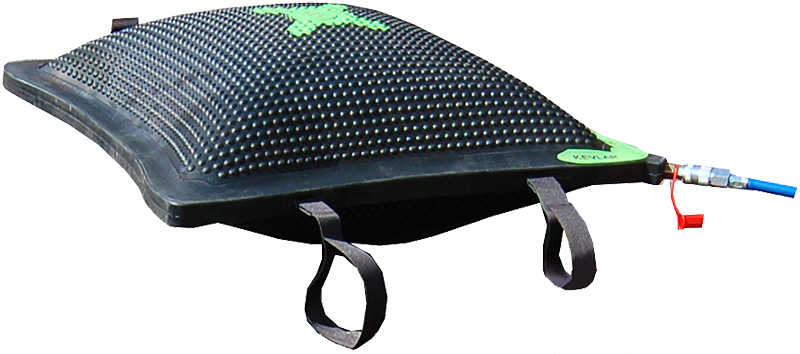

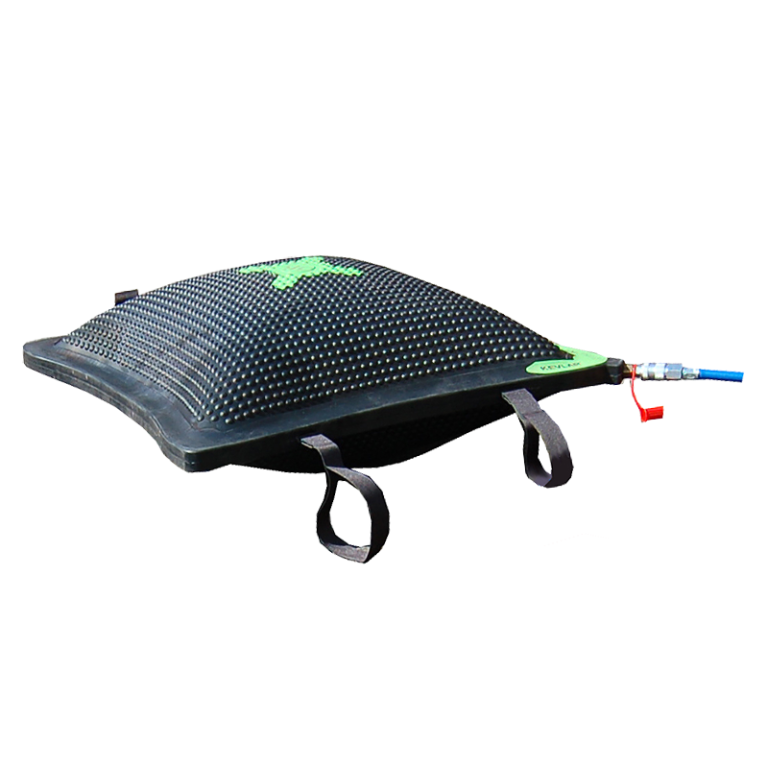

Luft­he­be­kis­sen der Serie ECO-Jack® AIR zeich­nen sich aus durch :

  • durch die gerin­ge Ein­bau­hö­he pas­sen die ECO-Jack AIR Hebe­kis­sen auch unter die engs­ten Berei­che mit Höhen von 30 mm bis 32 mm.
  • die Aus­stat­tung mit 2 Lagen Kev­lar mit Neopren.
  • gezahn­te Ober­flä­chen auf jeder Sei­te des Luft­kis­sen­he­bers, die dem Ver­rut­schen der Ladung vorbeugen
  • ver­stärk­te Kan­ten als Schutz vor Beschädigung
  • Mul­­ti-Color-Schläu­che, die die Zuord­nung der ein­zel­nen Kis­sen im Ein­satz erleich­tern (sie­he Zubehör).
  • ein gerin­ges Eigen­ge­wicht, das die Plat­zie­rung der Kis­sen erleichtert.
  • einen mar­kier­ten Mit­tel­punkt für die ein­fa­che Platzierung.
  • Sicher­heits­war­nun­gen in leuch­ten­den Far­ben für eine lan­ge Lebensdauer.

Für alle Ein­satz­be­rei­che, in denen aus dem Seri­en­sor­ti­ment das Stan­dard­ge­rät nicht aus­reicht, kon­stru­ie­ren wir Son­der­lö­sun­gen, die indi­vi­du­ell auf die Kun­den zuge­schnit­ten sind.

Bild folgt

AIR 1

Part number
Part number
190.100.010
Capacity (kg)
Capacity (kg)
800
Working pressure (bar)
Working pressure (bar)
8 bar
Stroke (mm)
Stroke (mm)
80 mm
Dimensions LxWxH (mm)
Dimensions LxWxH (mm)
150 x 150 x 25 mm
Weight (kg)
Weight (kg)
0.6
Bild folgt

AIR 3

Part number
Part number
190.100.030
Capacity (kg)
Capacity (kg)
2700
Working pressure (bar)
Working pressure (bar)
8 bar
Stroke (mm)
Stroke (mm)
130 mm
Dimensions LxWxH (mm)
Dimensions LxWxH (mm)
225 x 225 x 25 mm
Weight (kg)
Weight (kg)
1.3
Bild folgt

AIR 6

Part number
Part number
190.100.060
Capacity (kg)
Capacity (kg)
5500
Working pressure (bar)
Working pressure (bar)
8 bar
Stroke (mm)
Stroke (mm)
160 mm
Dimensions LxWxH (mm)
Dimensions LxWxH (mm)
300 x 300 x 25 mm
Weight (kg)
Weight (kg)
2.4
Bild folgt

AIR 10

Part number
Part number
190.100.100
Capacity (kg)
Capacity (kg)
10100
Capacity at 120 mm (kg)
Capacity at 120 mm (kg)
1760
Working pressure (bar)
Working pressure (bar)
8 bar
Stroke (mm)
Stroke (mm)
210 mm
Dimensions LxWxH (mm)
Dimensions LxWxH (mm)
380 x 380 x 25 mm
Weight (kg)
Weight (kg)
3.5
Bild folgt

AIR 13

Part number
Part number
190.100.130
Capacity (kg)
Capacity (kg)
13500
Capacity at 120 mm (kg)
Capacity at 120 mm (kg)
3290
Working pressure (bar)
Working pressure (bar)
8 bar
Stroke (mm)
Stroke (mm)
250 mm
Dimensions LxWxH (mm)
Dimensions LxWxH (mm)
450 x 450 x 25 mm
Weight (kg)
Weight (kg)
5
Bild folgt

AIR 20

Part number
Part number
190.100.200
Capacity (kg)
Capacity (kg)
21100
Capacity at 120 mm (kg)
Capacity at 120 mm (kg)
8200
Working pressure (bar)
Working pressure (bar)
8 bar
Stroke (mm)
Stroke (mm)
300 mm
Dimensions LxWxH (mm)
Dimensions LxWxH (mm)
550 x 550 x 25 mm
Weight (kg)
Weight (kg)
7
Bild folgt

AIR 25

Part number
Part number
190.100.250
Capacity (kg)
Capacity (kg)
25200
Capacity at 120 mm (kg)
Capacity at 120 mm (kg)
11400
Working pressure (bar)
Working pressure (bar)
8 bar
Stroke (mm)
Stroke (mm)
340 mm
Dimensions LxWxH (mm)
Dimensions LxWxH (mm)
610 x 610 x 25 mm
Weight (kg)
Weight (kg)
9
Bild folgt

AIR 32

Part number
Part number
190.100.320
Capacity (kg)
Capacity (kg)
33000
Capacity at 120 mm (kg)
Capacity at 120 mm (kg)
16000
Working pressure (bar)
Working pressure (bar)
8 bar
Stroke (mm)
Stroke (mm)
380 mm
Dimensions LxWxH (mm)
Dimensions LxWxH (mm)
690 x 690 x 25 mm
Weight (kg)
Weight (kg)
11
Bild folgt

AIR 42

Part number
Part number
190.100.420
Capacity (kg)
Capacity (kg)
44600
Capacity at 120 mm (kg)
Capacity at 120 mm (kg)
22200
Working pressure (bar)
Working pressure (bar)
8 bar
Stroke (mm)
Stroke (mm)
420 mm
Dimensions LxWxH (mm)
Dimensions LxWxH (mm)
780 x 780 x 25 mm
Weight (kg)
Weight (kg)
14
Bild folgt

AIR 55

Part number
Part number
190.100.550
Capacity (kg)
Capacity (kg)
55000
Capacity at 120 mm (kg)
Capacity at 120 mm (kg)
31600
Working pressure (bar)
Working pressure (bar)
8 bar
Stroke (mm)
Stroke (mm)
470 mm
Dimensions LxWxH (mm)
Dimensions LxWxH (mm)
870 x 870 x 25 mm
Weight (kg)
Weight (kg)
18
Bild folgt

AIR 69

Part number
Part number
190.100.690
Capacity (kg)
Capacity (kg)
70400
Capacity at 120 mm (kg)
Capacity at 120 mm (kg)
46000
Working pressure (bar)
Working pressure (bar)
8 bar
Stroke (mm)
Stroke (mm)
520 mm
Dimensions LxWxH (mm)
Dimensions LxWxH (mm)
945 x 945 x 26 mm
Weight (kg)
Weight (kg)
22.5
